Examples of Solar Panels mounted on top of Canopies

These pictures are of four 165 watt panels mounted above the canopy. This system currently runs the whole boat unless they want to run the air conditioner. We mount less panels for smaller systems and smaller panels. This system also has room to easily add more panels to the rail system.

 As you can see the “foot print” of the panels takes up very little room and contours the shape of the canopy. There is also plenty of room to add panels as your needs grow!

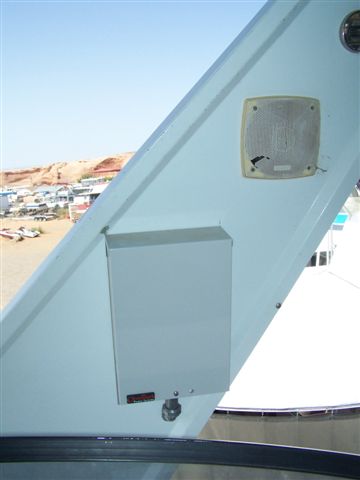

 neat_retreats_solar_inverter_system_005.jpg  This is the combiner box that has the GFI breakers where the panels connect and then go to the solar controller.
 neat_retreats_solar_inverter_system_008.jpg  This shows inside the combiner box. As you can see there is plenty of room to expand and we do nice, clean work even where people do not see it!
 neat_retreats_solar_inverter_system_010.jpg  As you can see everything is clean and in conduit.
